課題データ / Project Data

課題番号 / Project Issue Number

24UT0177

利用課題名 / Title

Sub-10 nm Nanopore STEM drilling for ssDNA sequencing

利用した実施機関 / Support Institute

東京大学 / Tokyo Univ.

機関外・機関内の利用 / External or Internal Use

内部利用(ARIM事業参画者以外)/Internal Use (by non ARIM members)

技術領域 / Technology Area

【横断技術領域 / Cross-Technology Area】(主 / Main)加工・デバイスプロセス/Nanofabrication(副 / Sub)計測・分析/Advanced Characterization

【重要技術領域 / Important Technology Area】(主 / Main)次世代ナノスケールマテリアル/Next-generation nanoscale materials(副 / Sub)次世代バイオマテリアル/Next-generation biomaterials

キーワード / Keywords

電子顕微鏡/ Electronic microscope,バイオセンサ/ Biosensor,原子層薄膜/ Atomic layer thin film,膜加工・エッチング/ Film processing/etching


利用者と利用形態 / User and Support Type

利用者名(課題申請者)/ User Name (Project Applicant)

Lee Chun-Yen

所属名 / Affiliation

東京大学工学系研究科 機械工学専攻

共同利用者氏名 / Names of Collaborators in Other Institutes Than Hub and Spoke Institutes

森賀 崇行

ARIM実施機関支援担当者 / Names of Collaborators in The Hub and Spoke Institutes

森田 真理

利用形態 / Support Type

(主 / Main)技術補助/Technical Assistance(副 / Sub)-


利用した主な設備 / Equipment Used in This Project

UT-002:軽元素対応型超高分解能走査透過型電子顕微鏡(Cs-STEM)


報告書データ / Report

概要(目的・用途・実施内容)/ Abstract (Aim, Use Applications and Contents)

Solid-state nanopores offer a promising platform for next-generation biomolecular sensing and sequencing. However, achieving precise control over nanopore size and shape remains a significant challenge. Here, we demonstrate the fabrication of sub-10 nm nanopores in monolayer MoS2 using an electron beam in a scanning transmission electron microscope (STEM). These nanopores are specifically tailored for ssDNA sequencing applications, providing a pathway toward improved control and performance in nanopore-based sensing technologies.

実験 / Experimental

We have conducted nanopore drilling by utilizing 200kV acceleration voltage STEM (JEM-ARM200F ColdFE).  Below are the procedures:1. Irradiate the single-layer MoS2 membrane with a beam in Ronchigram mode to sputter atoms and open a nanopore. 2. Observe the resulting nanopore shape in low-magnification scan mode.

結果と考察 / Results and Discussion

We have successfully fabricated nanopores on a MoS2 membrane, measuring approximately 6 nm in diameter (Fig. 1(a)) and 4 nm in diameter (Fig. 1(b)). In particular, the 6 nm nanopore exhibited a highly circular shape. Thanks to their small geometry, these nanopores are expected to effectively capture DNA signals in sequencing or sensing experiments.

図・表・数式 / Figures, Tables and Equations

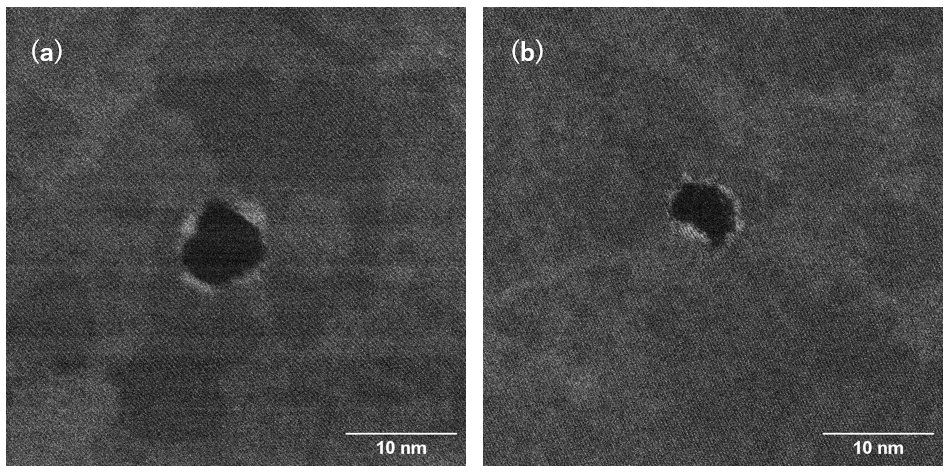

Fig. 1 Nanopore images under STEM (a) nanopore with 6nm in diamater (b) nanopore with 4nm in diameter


その他・特記事項(参考文献・謝辞等) / Remarks(References and Acknowledgements)


成果発表・成果利用 / Publication and Patents

論文・プロシーディング(DOIのあるもの) / DOI (Publication and Proceedings)
口頭発表、ポスター発表および、その他の論文 / Oral Presentations etc.
特許 / Patents

特許出願件数 / Number of Patent Applications:0件
特許登録件数 / Number of Registered Patents:0件
