 Thermal management is critically important for system integration, especially for 3D integration. Due to the high thermal conductivity and high elastic modulus of diamond, direct bonding of diamond wafers and other wafers has long been expected to be a technology that will solve the heat dissipation problem of power devices and open the possibility of developing new surface acoustic wave devices. However, conventional bonding technologies require high-temperature process, and the direct bonding of diamonds and semiconductors until now has only been possible with small pieces. To solve the warpage and surface roughness problems of diamond wafers and realize the bonding between diamond wafers and other substrates, the authors innovatively proposed a new polishing method combining a plasma-assisted polishing (PAP) process and a dry etching process using gas cluster ion beam (GCIB).

実験 / Experimental

 The 2-inch polycrystalline diamond wafers used in this experiment were grown on Si substrates. The as-grown diamond wafers were first polished by CMP. Then, PAP was used to decrease the curvature (sori) of the wafers. Finally, GCIB was applied for the final surface smoothing. To trace the surface roughness of diamond wafers at different stages, a atomic force microscopy (AFM, L-trace II) was used.

結果と考察 / Results and Discussion

 The AFM image of diamond surface after CMP is displayed in Fig. 1. Due to the anisotropy of diamond polishing, diamond grains with the " hard " orientation was difficult to be smoothed resulting in protrusions left on the surface. The height of large protrusions was about 20 nm, and that of small ones was about 10 nm. General speaking, the surface without diamond grain protrusions was smooth. From the AFM image of PAP processed diamond in Fig. 2, it is noted that although the diamond protrusions disappeared, the surface was not smooth enough with the Ra 2.4 nm and RMS 3.2 nm. To obtain the atomic smooth surface, SF6-GCIB was applied to irradiate the diamond wafer. The AFM image of in Fig. 3 shows that the polishing lines on diamond surface was removed resulting in a ultra smooth surface with the surface roughness Ra of 0.4 nm and RMS of 0.5 nm, which could meet the requirement of direct bonding.
Diamond wafers after the final GCIB polishing were bonded to LiNbO3 wafer and GaN wafer using the modified SAB with Si nano-adhesion layer. The images of bonded wafers present in Fig. 4 verify that the whole area bonding was achieved except the edge and particle existed areas.

図・表・数式 / Figures, Tables and Equations

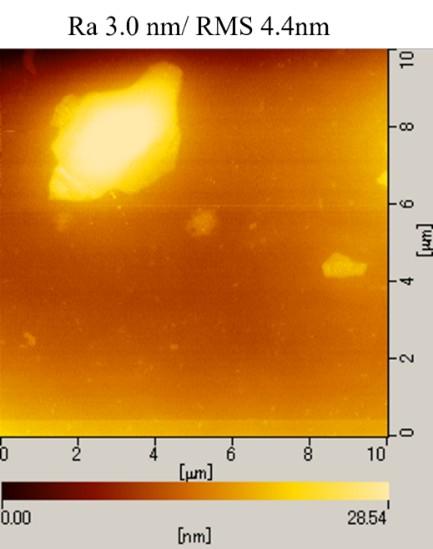

Fig.1 AFM image of diamond wafer surface after CMP.

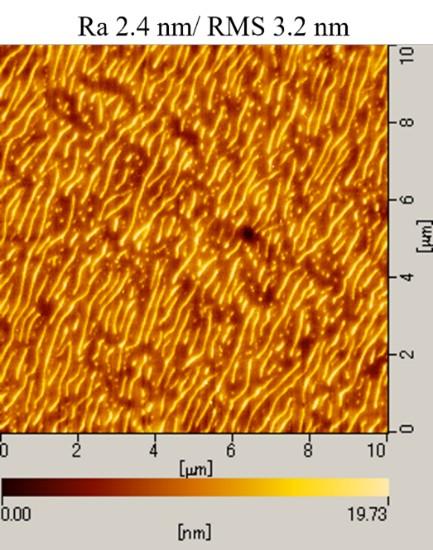

Fig.2 AFM image of diamond wafer surface after PAP.

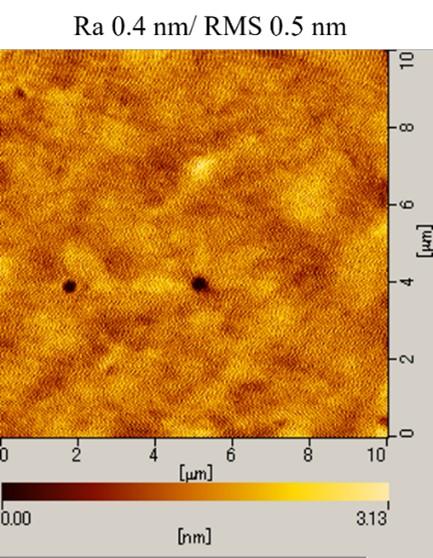

Fig.3 AFM image of diamond wafer surface after SF6 GCIB.

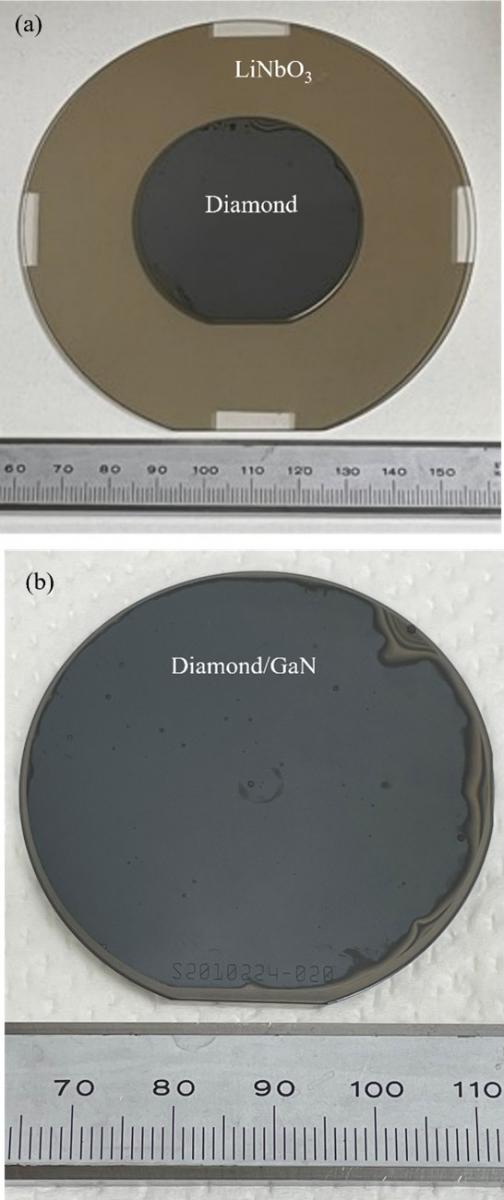

Fig.4 Images of bonded wafers (a) 2 inch diamond wafer/ 4inch LiNbO3 wafer;  (b) 2 inch diamond/ 2 inch GaN wafer.
