In-situ gas atmosphere transmission electron microscopy of hydrogen de/absorption in TiH2
利用した実施機関 / Support Institute
九州大学 / Kyushu Univ.
機関外・機関内の利用 / External or Internal Use
外部利用/External Use
技術領域 / Technology Area
【横断技術領域 / Cross-Technology Area】（主 / Main）計測・分析/Advanced Characterization（副 / Sub）-
【重要技術領域 / Important Technology Area】（主 / Main）高度なデバイス機能の発現を可能とするマテリアル/Materials allowing high-level device functions to be performed（副 / Sub）-
キーワード / Keywords
Hydrogen storage, metal hydrides, titanium hydride, in-situ electron microscopy,電子顕微鏡/ Electronic microscope
利用者と利用形態 / User and Support Type
利用者名（課題申請者）/ User Name (Project Applicant)
TAN Xin Fu
所属名 / Affiliation
The University of Queensland Mechanical and Mining Engineering
共同利用者氏名 / Names of Collaborators Excluding Supporters in the Hub and Spoke Institutes
HAMANO Yuma,KAWAMI Youichirou
ARIM実施機関支援担当者 / Names of Supporters in the Hub and Spoke Institutes
YASUDA Kazuhiro
利用形態 / Support Type
（主 / Main）技術補助/Technical Assistance（副 / Sub）-
利用した主な設備 / Equipment Used in This Project
報告書データ / Report
概要（目的・用途・実施内容）/ Abstract (Aim, Use Applications and Contents)
Ti based hydrides have been identified as potential hydrogen storage materials due to their high volumetric H2 capacities. In addition to the technical advantages, Ti hydrides have relatively low raw material costs as Ti is used as structural material, and it is non-toxic. This experiment studies the desorption and re-absorption of hydrogen in TiH2 in-situ under transmission electron microscopy (TEM). In-situ TEM observation during hydrogen absorption and desorption are vital in identifying the diffusion pathways of hydrogen and in understanding the fundamental mechanisms of phase nucleation and growth. However, due to the high vacuum environment in TEM, in-situ studies of hydrogen storage materials are often limited to hydrogen desorption only. In this study, in-situ TEM of H2 absorption of Ti based hydrides which have equilibrium temperatures above 300°C has been achieved along with in-situ H2 desorption. It reveals the desorption mechanism of TiH2 involves the nucleation of Ti at multiple sites in a TiH2 single crystal, while the absorption process involves the growth of TiH2 in the existing Ti crystals.
実験 / Experimental
Sample preparation:Approximately 3 mg of TiH2 powder (Sigma Aldrich, hydrogen storage grade) was dispersed in 1.5 ml of ethanol in a sample tube by placing in an ultrasonic bath for 10 min. To segregate the finer powder for TEM observation, the suspension was placed in a centrifuge and spun at 3000 rpm for 1 minute. The large particles are segregated at the bottom of the tube and the top 1.2 ml of the suspension was moved to a second tube with a pipette. The fine particles in the second tube were concentrated by spinning the tube at 6000 rpm for 1 minute and removing the top 0.8 ml of the suspension. A small drop of the concentrated fine particle suspension was placed on the Si3N4 window on a bottom E-chip (Protochips Atmosphere) using a micropipette. The E-chip was dried in a vacuum chamber overnight, before being assembled on the in-situ heating gas environmental TEM holder. TEM Experiment: The in-situ holder was placed into a JEOL JEM-ARM200CF TEM, operating at an accelerating voltage of 120 kV. Moisture in the assembled sample cell was removed by heating the cell to 100°C under an Ar atmosphere of 10 kPa at a flowrate of 1 sccm for 1 hour. Images of a selected TiH2 particle was obtained at 300°C (Point A), where the deposition of volatile organic compounds is minimal. Electron diffraction pattern (DP) was also obtained to identify the crystal structure of the sample. To perform in-situ hydrogen desorption, the Ar pressure was reduced to 0.5 kPa and the temperature was increased to 650°C at a rate of 4.8°C/min. Images and DP of the particle after hydrogen desorption (Point B) was captured. Following this, the temperature was decreased to 450°C at 60°C/min. Images and DP was captured again (Point C) before 101.3 kPa H2 pressure with a flowrate of 0.1 sccm was introduced for in-situ hydrogen absorption. Images and DP of the particle after hydrogen absorption (Point D) was captured.
結果と考察 / Results and Discussion
TEM image
of the as-received TiH2 particle shows it is covered by an oxide
skin of approximately 20 nm in thickness. At 300°C (Point A), the sample
comprises of two single crystal particles, matching that of cubic δ-TiH2.
As temperature increased to 600°C (Point B), hydrogen begun to desorb from the
TiH2 particle with the following transformation sequence:
Dehydrogenation of δ-TiHx → transformation of δ-TiHx
to β-TiHx → dehydrogenation reaction of β-TiHx → transformation of β-TiHx
to α-Ti → dehydrogenation of the α-Ti. The
concentric DP shows the particle becomes polycrystalline during the desorption
process, with lattice parameters matching that of α-Ti and β-TiHx.
As the
temperature was decreased to 450°C no obvious change was observed at Point C
(Fig. 2). When a hydrogen pressure of 101.3 kPa was introduced (Point D),
hydrogen absorption is expected to follow the reverse sequence to the
desorption process. The crystallites grew into facetted grains at the end of
the hydrogen absorption. The DP confirms that the particle remained
polycrystalline.
The
technique elucidated the formation of Ti nano-crystallites during hydrogen
desorption, indicating that Ti nucleates at multiple sites in the TiH2
single crystal. This was followed by the growth of facetted TiH2
from the existing nano-crystalline Ti during the H2 absorption
process.
図・表・数式 / Figures, Tables and Equations
Fig. 1. (a) TEM image and (b) electron diffraction pattern of an as-received TiH2 powder (Point A). (c) TEM image and (d) electron diffraction pattern of the TiH2 powder after H2 desorption (Point B).

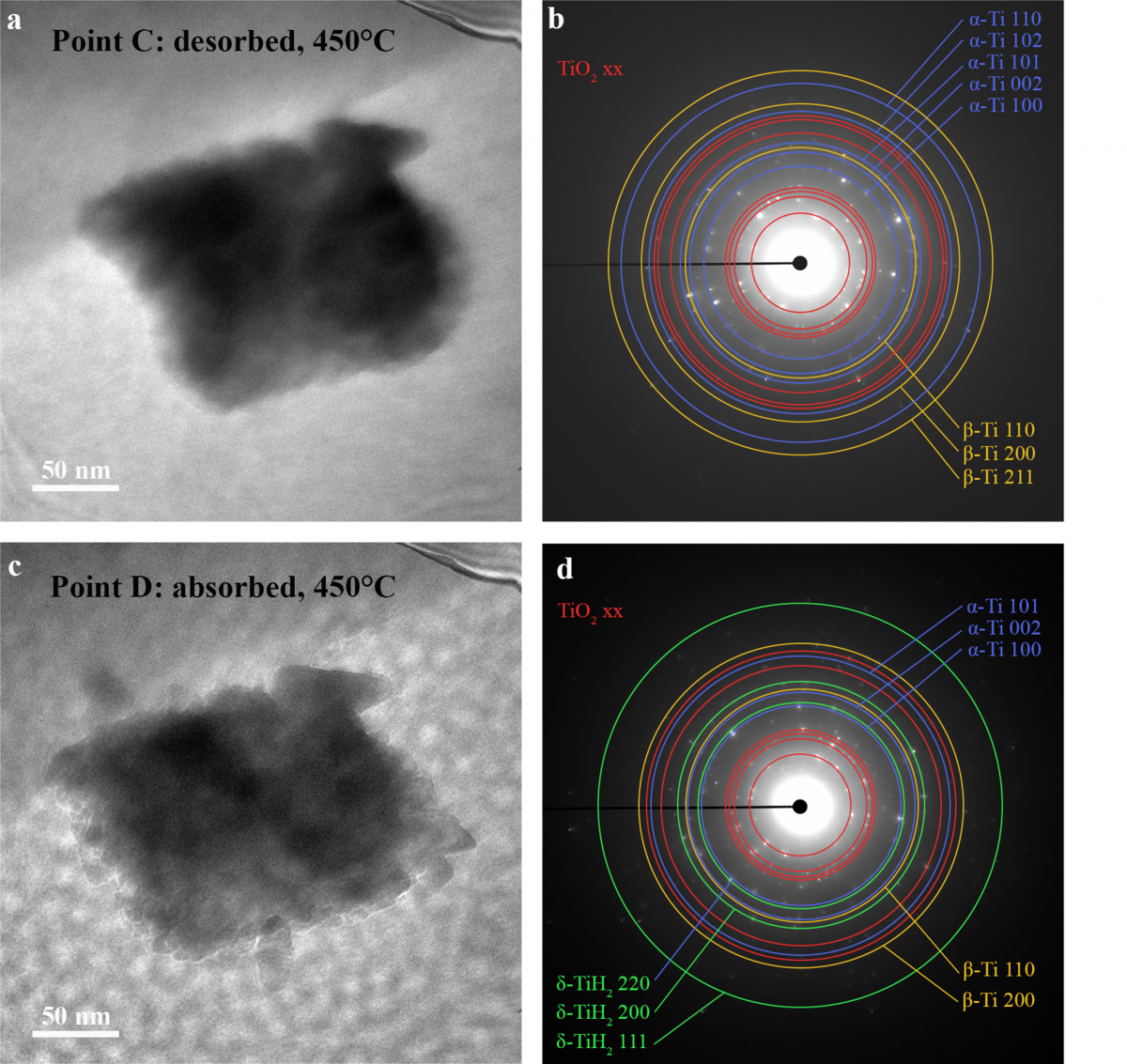

Fig. 2. (a) TEM image and (b) electron diffraction pattern of an TiH2 powder at Point C. (c) TEM image and (d) electron diffraction pattern of the TiH2 powder after H2 absorption (Point D).
その他・特記事項（参考文献・謝辞等） / Remarks(References and Acknowledgements)
X.F. Tan would like to acknowledge Japan Society for the Promotion of
Science (JSPS) Postdoctoral Fellowship for Research in Japan (Standard) (No.
P22739) for the financial support and the Australian Academy of Science for the
facilitation of the JSPS Fellowship.
Xin Fu Tan,"Improving Metal Hydrides to Diversify Energy Storage and Transportation”, The 14th HOPE Meeting with Nobel Laureates, Tsukuba, Japan, 27 Feb – 3 Mar 2023[poster]
