概要（目的・用途・実施内容）/ Abstract (Aim, Use Applications and Contents)
This study proposes a silicon pillar-based terahertz metasurface for polarization space-division multiplexing. By optimizing pillar geometry and spatial arrangement, it enables multi-polarization generation, modulation, and analysis. The M-4D device converts a linearly polarized wave into four beams with distinct polarization angles, while M-2B and M-4B generate vector Bessel beams. Fabricated on a high-resistivity silicon substrate using photolithography and deep silicon etching, the design is validated through simulations and experiments. This approach advances metasurface-based polarization control with potential applications in imaging, sensing, communication, and beyond.
実験 / Experimental
(1) Mask Fabrication: First, the mask pattern was
exposed onto a Cr-coated quartz substrate coated with AZ1350 positive
photoresist using the Maskless Aligner TU-058. Development was carried out in
the Draft Chamber for Development TU-060, followed by Cr pattern transfer using
a Cr etchant. The remaining photoresist was removed in the Draft Chamber TU-001
using a H2SO4:H2O2 = 5:1 solution, yielding the final mask. This mask can be used in
subsequent traditional photolithography processes, as shown in the figure 1 Photos and
Microscopic Images of the Mask.
(2) Photolithography Process: A high-resistivity silicon substrate (1 mm thick)
was used. An adhesion promoter (OPA) was spin-coated using the Mikasa Spin
Coater TU-051 and baked on the Hot Plate TU-054. PR800-200cp positive
photoresist was then spin-coated using the Spin Coater TU-052 and baked on the
Hot Plate TU-054. The mask was mounted on the Double-Side Aligner TU-056 for
exposure. After exposure, development was performed in the Draft Chamber for
Development TU-060, resulting in a patterned photoresist on the silicon
substrate （Figure 2).
(3)Deep Silicon Etching Process:
Deep silicon etching was conducted using DeepRIE #1 TU-201, with etching depth
monitored and measured using the Laser/White Light Confocal Microscope TU-310.
After processing, the final sample was inspected using the Microscope TU-307.
The final results are shown in the figure Photos and
Microscopic Images of the Etched Sample.
結果と考察 / Results and Discussion
The required etching depth is 200 µm. The actual etching depths measured at different positions using the Laser/White Light Confocal Microscope TU-310 are shown in the picture below （Figure 3). The results indicate that the central region has a shallower etching depth compared to the edges, exhibiting a certain degree of non-uniformity. Optimization may be achieved by adjusting etching parameters such as etching time, passivation time, and gas pressure.
図・表・数式 / Figures, Tables and Equations

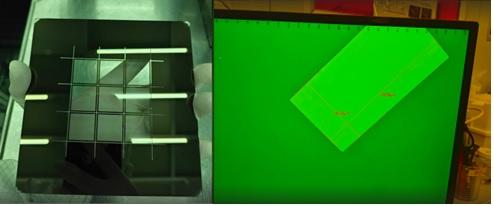

Figure 1. Photos and Microscopic Images of the Mask

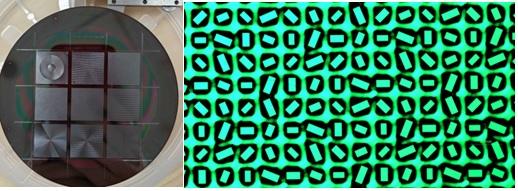

Figure 2. Photos and Microscopic Images of the Etched Sample

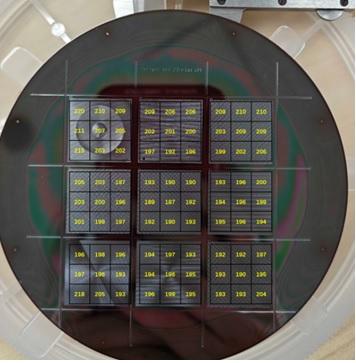

Figure 3. Etching Depth Measurement Results
